164A19929X | CONEC

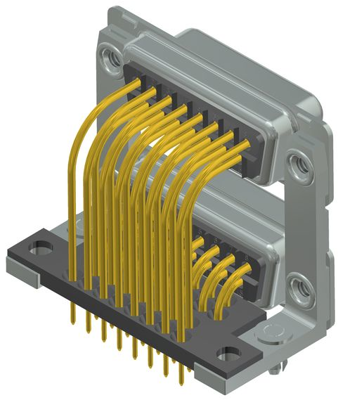

D-Sub socket, 15 pole, dual port, equipped, socket header/socket header, angled, solder pin, 164A19929X
Order No.: 74F349
EAN: 4099889809206
MPN:
164A19929X
Unit Price (€ / pc.)
22.0507 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
22.05 € *
Price list
Quantity
Price per unit*
1 pcs.
22.0507 €
2 pcs.
20.6346 €
5 pcs.
19.3851 €
10 pcs.
18.0166 €
*incl. VAT plus shipping costs
Subject to prior sale
D-Sub Dual Port Connector, 164A19929X, CONEC
D-SUB Dual Port with a insulator material PBT GF UL 94 V-0, black, signal contact material copper alloy, dielectric with standing voltage signal: 1000 V
Technical Data
- Rated current: 7.5 A
- Insulator color: Black
- Termination signal: Solder Pin
- Degree of protection IP: IP20
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version (down) | socket header | |
| Additional parts | equipped | |
| Pin number | 15 pole | |
| Data contacts (top) | 15 | |
| Pole image | dual port | |
| Type of locking | threaded insert 4-40 UNC | |
| Verison (up) | socket header | |
| Attachment (rear panel) | PCB clip | |
| Assembly | angled | |
| Contact connection | solder pin | |
| Data contacts (bottom) | 15 | |
| Version | socket header |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
