164A18189X | CONEC

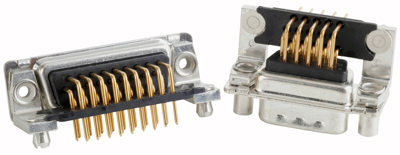

D-Sub socket, 26 pole, high density, equipped, angled, solder pin, 164A18189X
Order No.: 74F343
EAN: 4099889809145
MPN:
164A18189X
Unit Price (€ / pc.)
13.8278 € *
Available: 5 pcs.
Total Price:
13.83 € *
Price list
Quantity
Price per unit*
1 pcs.
13.8278 €
5 pcs.
13.1138 €
10 pcs.
12.2689 €
25 pcs.
11.1860 €
*incl. VAT plus shipping costs
Subject to prior sale
Socket Header, 164A18189X, CONEC
D-Sub High density, Socket strip, 26-pole, Solder pin, Operating temperature -55 to 125°C, dielectric strength signal 1000 V, protection class IP20
Technical Data
- Assembly: PCB, angled
- Pin number: 26-pole
- Pole image: High density
- Additional parts: Fully equipped
- Contact connection: Solder pin
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | equipped | |
| Type of locking | threaded insert 4-40 UNC | |
| Pole image | high density | |
| Attachment (rear panel) | metal bracket | |
| Assembly | angled | |
| Version | socket header | |
| Contact connection | solder pin | |
| Pin number | 26 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
