164A17209X | CONEC

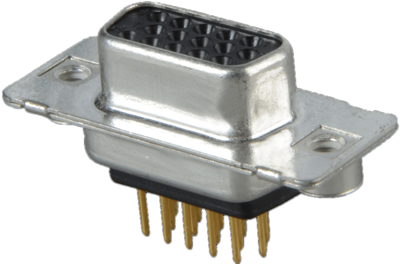

D-Sub socket, 15 pole, high density, equipped, straight, solder pin, 164A17209X
Order No.: 74F337
EAN: 4099889809084
MPN:
164A17209X
Unit Price (€ / pc.)
6.1761 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
6.18 € *
Price list
Quantity
Price per unit*
1 pcs.
6.1761 €
10 pcs.
5.7358 €
25 pcs.
5.3550 €
50 pcs.
4.8671 €
*incl. VAT plus shipping costs
Subject to prior sale
Socket Header, 164A17209X, CONEC
D-Sub High density, Socket strip, 15-pole, Solder pin, Operating temperature -55 to 125°C, dielectric strength signal 1000 V, protection class IP20
Technical Data
- Assembly: PCB, straight
- Pin number: 15-pole
- Pole image: High density
- Additional parts: Fully equipped
- Contact connection: Solder pin
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | equipped | |
| Type of locking | threaded insert 4-40 UNC | |
| Pole image | high density | |
| Attachment (rear panel) | through hole | |
| Assembly | straight | |
| Version | socket header | |
| Contact connection | solder pin | |
| Pin number | 15 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
