164A16799X | CONEC

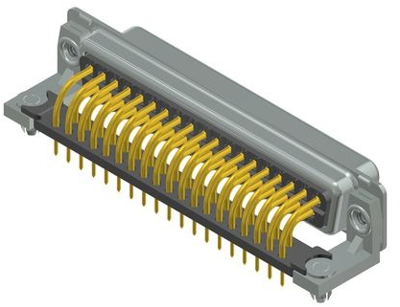

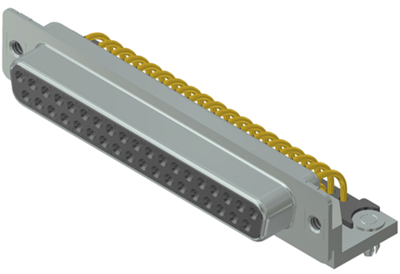

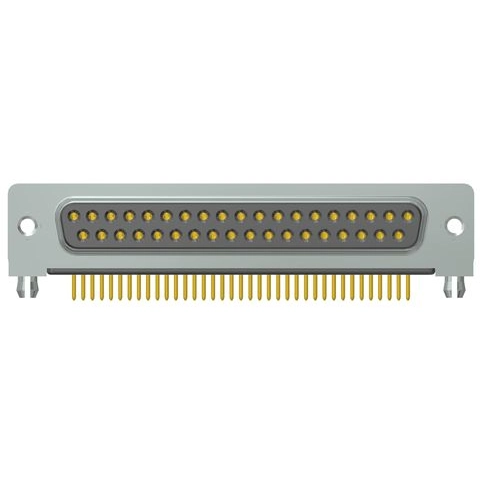

D-Sub socket, 37 pole, standard, equipped, angled, solder pin, 164A16799X
Order No.: 74F331
EAN: 4099889809022
MPN:
164A16799X
Unit Price (€ / pc.)
14.5656 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
14.57 € *
Price list
Quantity
Price per unit*
1 pcs.
14.5656 €
5 pcs.
13.8040 €
10 pcs.
12.9115 €
25 pcs.
11.7810 €
*incl. VAT plus shipping costs
Subject to prior sale
Socket Header, 164A16799X, CONEC
D-Sub, standard, Socket strip, 37-pole, Solder pin, Operating temperature -55 to 125°C, dielectric strength signal 1000 V, protection class IP20
Technical Data
- Assembly: PCB, angled
- Pin number: 37-pole
- Pole image: Standard
- Additional parts: Fully equipped
- Contact connection: Solder pin
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 37 pole | |
| Version | socket header | |
| Contact connection | solder pin | |
| Pole image | standard | |
| Additional parts | equipped | |
| Assembly | angled | |
| Type of locking | threaded bolts 4-40 UNC | |
| Attachment (rear panel) | metal bracket |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
