164A16609X | CONEC

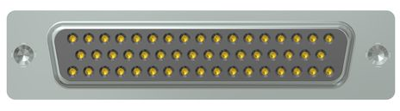

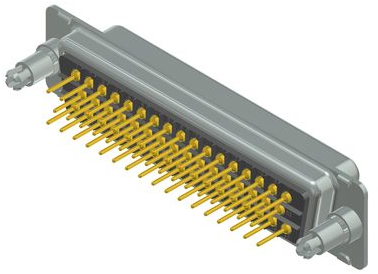

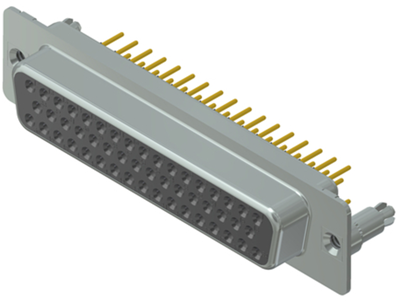

D-Sub socket, 50 pole, standard, equipped, straight, solder pin, 164A16609X
Order No.: 74F327
EAN: 4099889808988
MPN:
164A16609X
Unit Price (€ / pc.)
13.4351 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
13.44 € *
Price list
Quantity
Price per unit*
1 pcs.
13.4351 €
5 pcs.
12.7449 €
10 pcs.
11.9238 €
25 pcs.
10.8647 €
*incl. VAT plus shipping costs
Subject to prior sale
D-Sub socket, 164A16609X, CONEC
Features
- Metal shell: Steel
- Contact material: Copper alloy
- Protection degree: IP20
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket header | |
| Pin number | 50 pole | |
| Type of locking | threaded bolts 4-40 UNC | |
| Contact connection | solder pin | |
| Attachment (rear panel) | spacer bolt with Snap-In | |
| Additional parts | equipped | |
| Pole image | standard | |
| Assembly | straight |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
