163A19529X | CONEC

D-Sub socket/plug, 9 pole, high density, equipped, pin header/pin header, angled, solder pin, 163A19529X

Order No.: 74F303
EAN: 4099889808742
MPN:
163A19529X

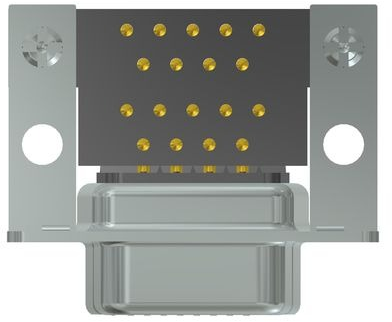

163A19529X CONEC D-Sub Connectors Image 1

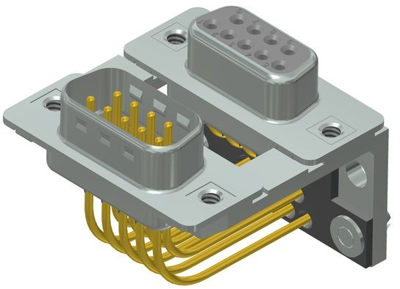

163A19529X CONEC D-Sub Connectors Image 2

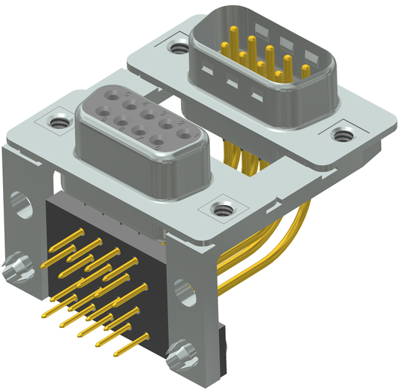

163A19529X CONEC D-Sub Connectors Image 3
Image may differ
Unit Price (€ / pc.)
10.9718 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
10.97 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
10.9718 €

D-Sub High density Connector, 163A19529X, CONEC

D-SUB Dual Port with a insulator material PBT GF UL 94 V-0, black, signal contact material copper alloy, dielectric with standing voltage signal: 1000 V

Technical Data

  • Rated current: 7.5 A
  • Insulator color: Black
  • Termination signal: Solder Pin
  • Degree of protection IP: IP20
Technical specifications
Data contacts (bottom) 9
Type of locking threaded insert 4-40 UNC
Pole image high density
Attachment (rear panel) PCB clip
Assembly angled
Verison (up) pin header
Contact connection solder pin
Version (down) pin header
Pin number 9 pole
Version pin header
Additional parts equipped
Data contacts (top) 9
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
