163A17779X | CONEC
D-Sub plug, 26 pole, high density, equipped, angled, solder pin, 163A17779X
Order No.: 74F294
EAN: 4099889808650
MPN:
163A17779X
Unit Price (€ / pc.)
11.4240 € *
Available: 25 pcs.
Total Price:
11.42 € *
Price list
Quantity
Price per unit*
1 pcs.
11.4240 €
5 pcs.
10.8290 €
10 pcs.
10.1388 €
25 pcs.
9.2344 €
*incl. VAT plus shipping costs
Subject to prior sale

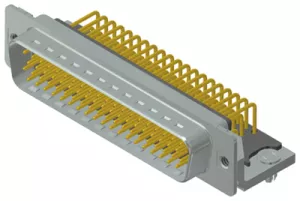

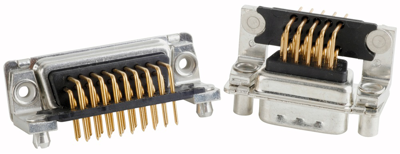

Male Header, 163A17779X, CONEC
D-Sub High density, Male header, 26-pole, Solder pin, Operating temperature -55 to 125°C, dielectric strength signal 1000 V, protection class IP20
Technical Data
- Assembly: PCB, angled
- Pin number: 26-pole
- Pole image: High density
- Additional parts: Fully equipped
- Contact connection: Solder pin
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | equipped | |
| Type of locking | threaded insert 4-40 UNC | |
| Pole image | high density | |
| Attachment (rear panel) | plastic bracket | |
| Assembly | angled | |
| Version | pin header | |
| Contact connection | solder pin | |
| Pin number | 26 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
