163A16359X | CONEC

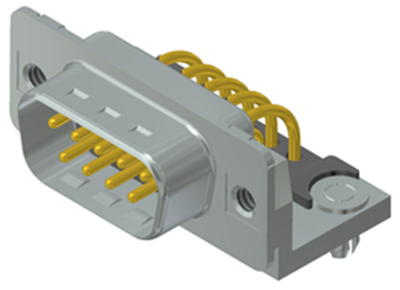

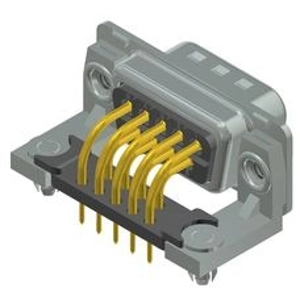

D-Sub plug, 9 pole, standard, equipped, angled, solder pin, 163A16359X
Order No.: 74F279
EAN: 4099889808506
MPN:
163A16359X
Unit Price (€ / pc.)
4.3316 € *
Available: 21 pcs.
Total Price:
4.33 € *
Price list
Quantity
Price per unit*
1 pcs.
4.3316 €
10 pcs.
4.0103 €
50 pcs.
3.7009 €
*incl. VAT plus shipping costs
Subject to prior sale
Male Header, 163A16359X, CONEC
D-Sub, standard, Male header, 9-pole, Solder pin, Operating temperature -55 to 125°C, dielectric strength signal 1000 V, protection class IP20
Technical Data
- Assembly: PCB, angled
- Pin number: 9-pole
- Pole image: Standard
- Additional parts: Fully equipped
- Contact connection: Solder pin
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 9 pole | |
| Pole image | standard | |
| Version | pin header | |
| Assembly | angled | |
| Additional parts | equipped | |
| Type of locking | threaded insert 4-40 UNC | |
| Contact connection | solder pin | |
| Attachment (rear panel) | plastic bracket |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
