163A11309X | CONEC

D-Sub plug, 50 pole, standard, equipped, straight, solder cup, 163A11309X

Order No.: 74F273
EAN: 4099889808445
MPN:
163A11309X

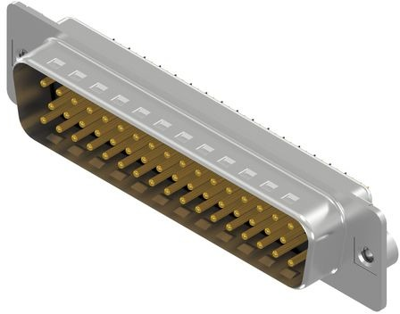

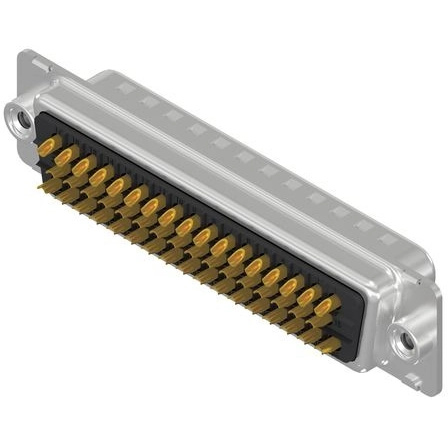

163A11309X CONEC D-Sub Connectors Image 1
163A11309X CONEC D-Sub Connectors Image 2
163A11309X CONEC D-Sub Connectors Image 3
Image may differ
Unit Price (€ / pc.)
8.6156 € *
Available: 136 pcs.
Total Price:
8.62 € *
Price list
Quantity
Price per unit*
1 pcs.
8.6156 €
10 pcs.
7.9254 €
50 pcs.
7.2114 €
100 pcs.
6.4974 €
*incl. VAT plus shipping costs
Subject to prior sale

Male Header, 163A11309X, CONEC

D-Sub, standard, Male header, 50-pole, Solder cup, Operating temperature -55 to 125°C, dielectric strength signal 1000 V, protection class IP20

Technical Data

  • Assembly: Cable connection
  • Pin number: 50-pole
  • Pole image: Standard
  • Additional parts: Fully equipped
  • Contact connection: Solder cup
Technical specifications
Filter Property Value
Type of locking threaded insert 4-40 UNC
Pole image standard
Attachment (rear panel) spacer bolt with Snap-In
Assembly straight
Contact connection solder cup
Pin number 50 pole
Version pin header
Additional parts equipped
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
