15-006593E | CONEC

D-Sub socket, 9 pole, standard, equipped, straight, solder pin, 15-006593E

Order No.: 74F213
EAN: 4099889808216
MPN:
15-006593E

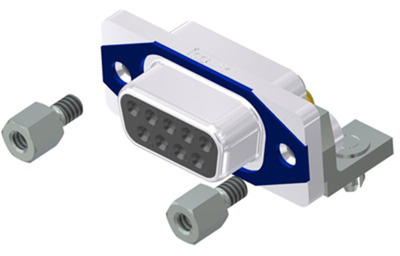

15-006593E CONEC D-Sub Connectors Image 1

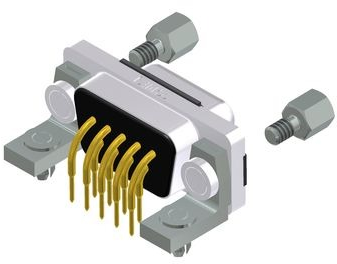

15-006593E CONEC D-Sub Connectors Image 2
15-006593E CONEC D-Sub Connectors Image 3
Image may differ
Unit Price (€ / pc.)
20.7298 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
20.73 € *
Price list
Quantity
Price per unit*
1 pcs.
20.7298 €
5 pcs.
19.6588 €
10 pcs.
18.3855 €
25 pcs.
16.7671 €
*incl. VAT plus shipping costs
Subject to prior sale

D-Sub socket, 15-006593E, CONEC

Features

  • With sealing gasket
  • Degree of protection: IP67
  • Metal shell: Zinc die cast
  • Contact material: Copper alloy
Technical specifications
Filter Property Value
Additional parts equipped
Pin number 9 pole
Pole image standard
Type of locking threaded bolts 4-40 UNC
Attachment (rear panel) plastic bracket
Assembly straight
Contact connection solder pin
Version socket header
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
