15-002093E | CONEC

D-Sub plug, 50 pole, standard, equipped, straight, solder cup, 15-002093E

Order No.: 74F186
EAN: 4099889808124
MPN:
15-002093E

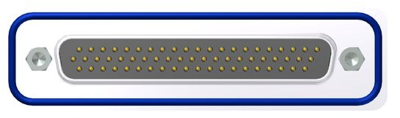

15-002093E CONEC D-Sub Connectors Image 1

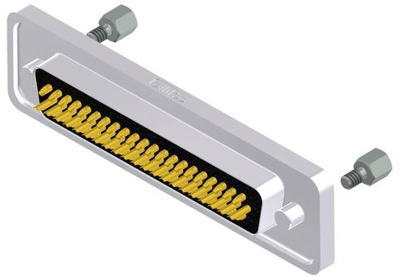

15-002093E CONEC D-Sub Connectors Image 2

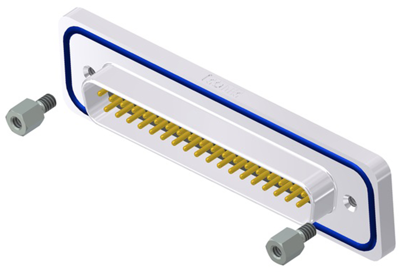

15-002093E CONEC D-Sub Connectors Image 3
Image may differ
Unit Price (€ / pc.)
22.9432 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
22.94 € *
Price list
Quantity
Price per unit*
1 pcs.
22.9432 €
2 pcs.
21.4557 €
5 pcs.
20.1586 €
10 pcs.
18.7425 €
*incl. VAT plus shipping costs
Subject to prior sale

D-Sub plug, 15-002093E, CONEC

Features

  • With rubber gasket
  • With O-ring
  • Degree of protection: IP67
  • Metal shell: Zinc die cast
  • Contact material: Copper alloy
Technical specifications
Filter Property Value
Additional parts equipped
Pin number 50 pole
Pole image standard
Type of locking threaded bolts 4-40 UNC
Attachment (rear panel) through hole
Assembly straight
Contact connection solder cup
Version pin header
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
