15-000723 | CONEC

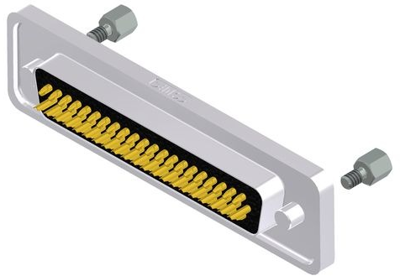

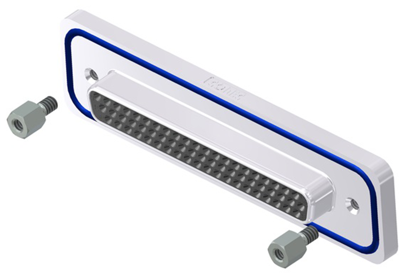

D-Sub socket, 62 pole, high density, equipped, straight, solder cup, 15-000723
Order No.: 74F185
EAN: 4099889808117
MPN:
15-000723
Unit Price (€ / pc.)
37.6635 € *
Available: 15 pcs.
Total Price:
37.66 € *
Price list
Quantity
Price per unit*
1 pcs.
37.6635 €
10 pcs.
35.0217 €
25 pcs.
32.2252 €
50 pcs.
29.3216 €
*incl. VAT plus shipping costs
Subject to prior sale
D-Sub socket, 15-000723, CONEC
Features
- With O-ring
- Degree of protection: IP67
- Metal shell: Zinc die cast
- Contact material: Copper alloy
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Type of locking | threaded bolts 4-40 UNC | |
| Pole image | high density | |
| Attachment (rear panel) | through hole | |
| Assembly | straight | |
| Contact connection | solder cup | |
| Pin number | 62 pole | |
| Version | socket header | |
| Additional parts | equipped |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
