15-000713 | CONEC

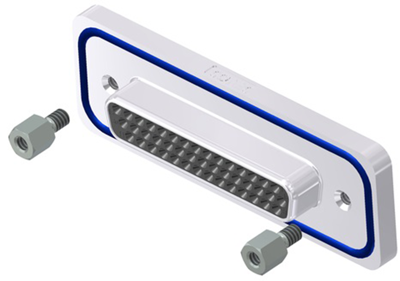

D-Sub socket, 44 pole, high density, equipped, straight, solder cup, 15-000713
Order No.: 74F184
EAN: 4099889808100
MPN:
15-000713
Unit Price (€ / pc.)
27.4057 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
27.41 € *
Price list
Quantity
Price per unit*
1 pcs.
27.4057 €
2 pcs.
25.6445 €
5 pcs.
24.0856 €
10 pcs.
22.3958 €
*incl. VAT plus shipping costs
Subject to prior sale
D-Sub socket, 15-000713, CONEC
Features
- With O-ring
- Degree of protection: IP67
- Metal shell: Zinc die cast
- Contact material: Copper alloy
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket header | |
| Pin number | 44 pole | |
| Type of locking | threaded bolts 4-40 UNC | |
| Contact connection | solder cup | |
| Attachment (rear panel) | through hole | |
| Additional parts | equipped | |
| Pole image | high density | |
| Assembly | straight |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
