15-000643E | CONEC

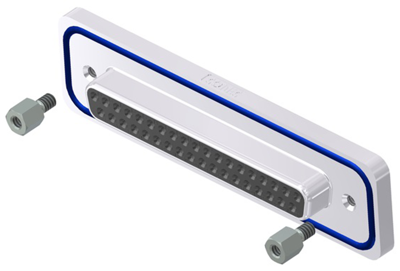

D-Sub socket, 37 pole, standard, equipped, straight, solder cup, 15-000643E
Order No.: 74F177
EAN: 4099889808032
MPN:
15-000643E
Unit Price (€ / pc.)
19.8016 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
19.80 € *
Price list
Quantity
Price per unit*
1 pcs.
19.8016 €
5 pcs.
18.7782 €
10 pcs.
17.5644 €
25 pcs.
16.0174 €
*incl. VAT plus shipping costs
Subject to prior sale
D-Sub socket, 15-000643E, CONEC
Features
- With O-ring
- Degree of protection: IP67
- Metal shell: Zinc die cast
- Contact material: Copper alloy
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket header | |
| Pin number | 37 pole | |
| Type of locking | threaded bolts 4-40 UNC | |
| Contact connection | solder cup | |
| Attachment (rear panel) | through hole | |
| Additional parts | equipped | |
| Pole image | standard | |
| Assembly | straight |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
