15-000633E | CONEC

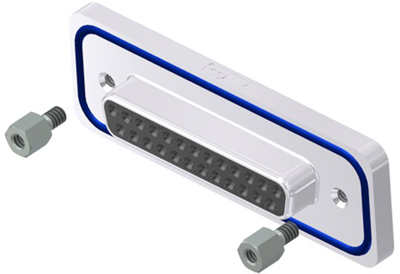

D-Sub socket, 25 pole, standard, equipped, straight, solder cup, 15-000633E
Order No.: 74F176
EAN: 4099889808025
MPN:
15-000633E
Unit Price (€ / pc.)
16.3982 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
16.40 € *
Price list
Quantity
Price per unit*
1 pcs.
16.3982 €
5 pcs.
15.5533 €
10 pcs.
14.5537 €
25 pcs.
13.2685 €
*incl. VAT plus shipping costs
Subject to prior sale
D-Sub socket, 15-000633E, CONEC
Features
- With O-ring
- Degree of protection: IP67
- Metal shell: Zinc die cast
- Contact material: Copper alloy
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | equipped | |
| Type of locking | threaded bolts 4-40 UNC | |
| Pole image | standard | |
| Attachment (rear panel) | through hole | |
| Assembly | straight | |
| Version | socket header | |
| Contact connection | solder cup | |
| Pin number | 25 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
