131C10049X | CONEC

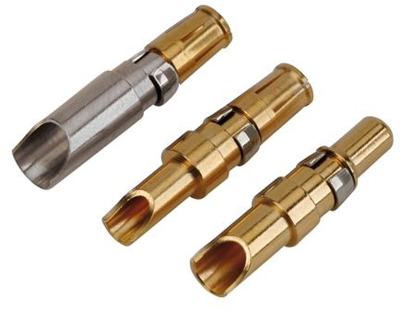

Pin contact, AWG 10-8, solder connection, gold-plated, 131C10049X
Order No.: 55F5644
EAN: 4099889660883
MPN:
131C10049X
Unit Price (€ / pc.)
1.5351 € *
Available: 136 pcs.
Available in 5 Days: 600 pcs. - if ordered today
Total Price:
1.54 € *
Price list
Quantity
Price per unit*
1 pcs.
1.5351 €
10 pcs.
1.4280 €
25 pcs.
1.3328 €
50 pcs.
1.2138 €
*incl. VAT plus shipping costs
Subject to prior sale
Corresponding high current contact, type 13.
With solder terminals. Quality grade 1 (0.8 µ gold-plating, mating side); Current rating: 10, 20 or 40 A. Insulation resistance: min. 5.0 Gohm. Contact resistance: max. 1.0 mohm. Operating temperatures: –55 to +155 °C.
Type: 131C10049X, male contact, 40 A
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | solder connection | |
| Contact surface mating area | nickel-plated | |
| Contact surface Connection range | gold-plated | |
| Insulation diameter | 4.8-5.5 mm | |
| Version | pin contact | |
| contact surface | gold-plated | |
| Contact material | copper alloy | |
| AWG cross-section | AWG 10-8 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
