131C10029X | CONEC

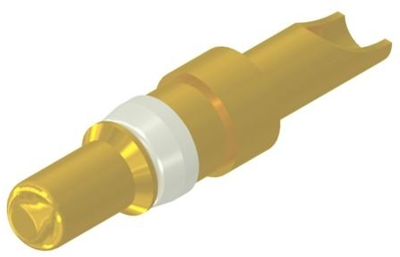

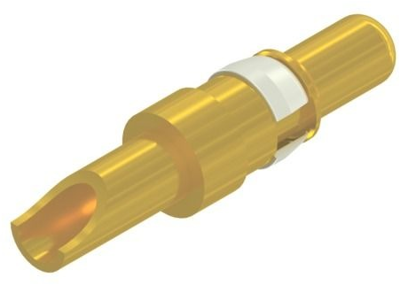

Pin contact, AWG 14-12, solder connection, gold-plated, 131C10029X
Order No.: 55F5642
EAN: 4099889660876
MPN:
131C10029X
Unit Price (€ / pc.)
1.8683 € *
Available: 184 pcs.
Next delivery: 300 pcs. on 2025-06-03
Leadtime: 5 Weeks **
Total Price:
1.87 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8683 €
100 pcs.
1.7017 €
250 pcs.
1.6184 €
1000 pcs.
1.4875 €
*incl. VAT plus shipping costs
**Subject to prior sale
Corresponding high current contact, type 13.
With solder terminals. Quality grade 1 (0.8 µ gold-plating, mating side); Current rating: 10, 20 or 40 A. Insulation resistance: min. 5.0 Gohm. Contact resistance: max. 1.0 mohm. Operating temperatures: –55 to +155 °C.
Type: 131C10029X, male contact, 20 A
Technical specifications
| Contact surface mating area | nickel-plated | |
| contact surface | gold-plated | |
| AWG cross-section | AWG 14-12 | |
| Contact surface Connection range | gold-plated | |
| Contact connection | solder connection | |
| Version | pin contact | |
| Contact material | copper alloy | |
| Insulation diameter | 2.7-3.63 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
