131A13039X | CONEC

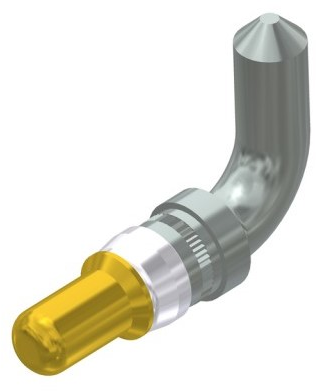

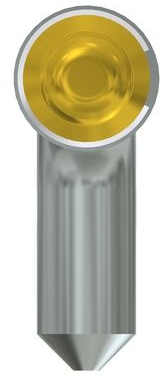

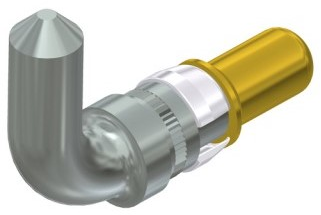

Pin contact, crimp connection, gold-plated, 131A13039X
Order No.: 55F5752
EAN: 4099889660999
MPN:
131A13039X
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
1.6065 € *
Available: 115 pcs.
Total Price:
1.61 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6065 €
10 pcs.
1.4994 €
25 pcs.
1.3923 €
50 pcs.
1.2733 €
*incl. VAT plus shipping costs
Subject to prior sale
Corresponding high current contact, type 13.
With solder terminals. Quality grade 3; Current rating: 15, 20 or 40 A. Insulation resistance: min. 5.0 Gohm. Contact resistance: max. 1.0 mohm. Operating temperatures: –55 to +125 °C.
Type: 131A13039X, pin contact, 40 A
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin contact | |
| Contact connection | crimp connection | |
| Contact material | copper alloy | |
| Contact surface mating area | nickel-plated | |
| contact surface | gold-plated | |
| Contact surface Connection range | tin-plated | |
| Insulation diameter | 3.6 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
