WG A5 6D 25 Z-LD | COMUS

Solid state relay, 3-32 VDC, zero voltage switching, 24-280 VAC, 25 A, PCB mounting, WG A5 6D 25 Z-LD

Order No.: 31G1303
EAN: 4099889360615
MPN:
WG A5 6D 25 Z-LD
Series: WG A5 6D

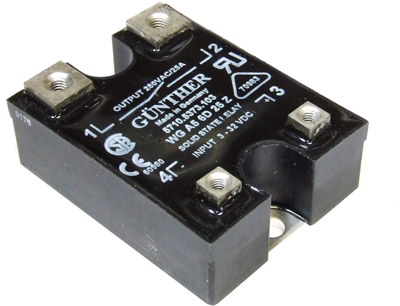

WG A5 6D 25 Z-LD COMUS Solid State Relays
Image may differ
Unit Price (€ / pc.)
17.4930 € *
Available: 11 pcs.
Next delivery: 50 pcs. on 2025-07-04
Total Price:
17.49 € *
Price list
Quantity
Price per unit*
1 pcs.
17.4930 €
5 pcs.
16.2197 €
*incl. VAT plus shipping costs
Subject to prior sale

Solid state relay, WG A5 6D 25 Z-LD, COMUS

With or without status LED, no-voltage release, for screw-on mounting, with screw terminals. Triac output, overvoltage protection, no-voltage release; Control voltage: 3.0 to 32 VDC. Control current: max. 10 mA (without status LED), 22 mA (with status LED). Load voltage: 24 to 280 VAC. Peak reverse voltage: 600 V. Leakage current: max. 12 mA RMS. Forward voltage: 1.85 V. Response/release time: max. 11/11 ms. Operating frequency: 47 to 63 Hz. Test voltage control/load circuit: 4.0 kV. Operating temperatures: -20 to +80 °C. Certifications: UL, CSA. Note: corresponding safety caps and heatsinks are described below the solid-state relays.

For load current 25 A, type WG-A5 6D 25.

Continuous load current range: 0.1 to 25 A. Surge current: 230 A. Peak load integral 2.0 s: 260 A.

Type: WG-A5 6D 25 Z-LD, solid-state relay with LED.

Technical specifications
Filter Property Value
Rated current 25 A
Voltage 24-280 VAC
Control Voltage 3-32 VDC
Voltage V RRM (peak reverse voltage) 600 V
Switching Mode zero voltage switching
Assembly PCB mounting
LED display No
Logistics
Property Value
Country of origin BE
Customs tariff number 85364900
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
