5780 5363 103 | COMUS
Solid state relay, 3-32 VDC, 10 A, PCB mounting, 5780 5363 103
Order No.: 31G1332
EAN: 4099889360721
MPN:
5780 5363 103
WGF 200 D 10
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
51.6103 € *
Available: 21 pcs.
Total Price:
51.61 € *
Price list
Quantity
Price per unit*
1 pcs.
51.6103 €
5 pcs.
48.5282 €
15 pcs.
46.6480 €
50 pcs.
44.6012 €
150 pcs.
42.7329 €
*incl. VAT plus shipping costs
Subject to prior sale

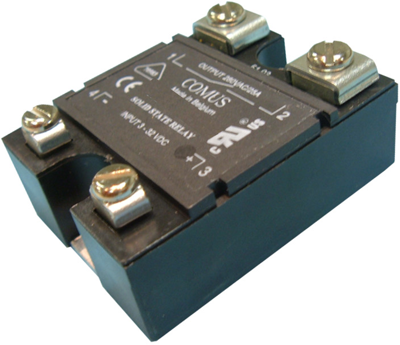

Solid state relay, 5780 5363 103, COMUS
For DC voltages with MOSFET output, for screw-on mounting. With screw terminals; Continuous load current range: 0 to 10 A. Load voltage: 1.0 to 200 VDC. Control voltage: 3.0 to 32 VDC. Control current: max. 25 mA. Peak reverse voltage: 200 V. Leakage current: 0.1 mA rms. Response/release time: max. 2.0/0.1 ms. Test voltage control/load circuit: 1.5 kV. Operating frequency: max. 250 Hz. Operating temperatures: -20 to +80 °C. Note: Corresponding safety caps and heatsinks are described below the solid-state relays section.
Type: WG-F 200 D 10, solid-state relay.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 10 A | |
| Voltage | 3-32 VDC | |
| Voltage V RRM (peak reverse voltage) | 200 V | |
| Assembly | PCB mounting | |
| LED display | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | BE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
