5720 5383 103 | COMUS
Solid state relay, 3-32 VDC, zero voltage switching, 24-280 VAC, 45 A, PCB mounting, 5720 5383 103
Unit Price (€ / pc.)
32.3561 € *
Available: 1 pcs.
Next delivery: 50 pcs. on 2025-10-31
Total Price:
32.36 € *
Price list
Quantity
Price per unit*
1 pcs.
32.3561 €
5 pcs.
30.4045 €
15 pcs.
29.2502 €
50 pcs.
27.9531 €
150 pcs.
26.7869 €
*incl. VAT plus shipping costs
Subject to prior sale

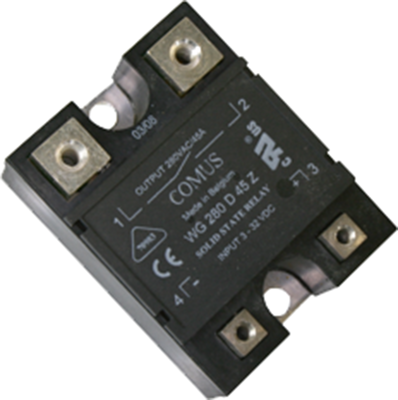

Solid state relay, 5720 5383 103, COMUS
No-voltage release, with thyristor output and overvoltage protection, for screw-on mounting. With screw terminals; Control voltage: 3.0 to 32 VDC. Control current: max. 10 mA. Load voltage: 24 to 280 VAC. Peak reverse voltage: 600 V. Leakage current: 12 mA rms. Forward voltage: 1.6 V. Response/release time: max. 11/11 ms. Operating frequency: 47 to 63 Hz. Test voltage control/load circuit: 4.0 kV. Operating temperatures: -20 to +80 °C. Certifications: VDE, cULus. Note: Corresponding safety caps and heatsinks are described below the solid-state relays section.
Load current 45 A, type WG-280 D 45 Z.
Continuous load current range: 0.4 to 45 A. Surge current: 500 A. Peak load integral 2.0 s: 1250 A.
Type: WG-280 D 45 Z, solid-state relay.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 45 A | |
| Voltage | 24-280 VAC | |
| Control Voltage | 3-32 VDC | |
| Voltage V RRM (peak reverse voltage) | 600 V | |
| Switching Mode | zero voltage switching | |
| Assembly | PCB mounting | |
| LED display | No |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | BE |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
