GC 3817(3540) | COMUS
Reed switche, THT, 1 Form A (N/O), 60 W, 400 V (DC), 3 A, GC 3817(3540)
Unit Price (€ / pc.)
1.9873 € *
Standard delivery time from the manufacturer is: 8 Weeks

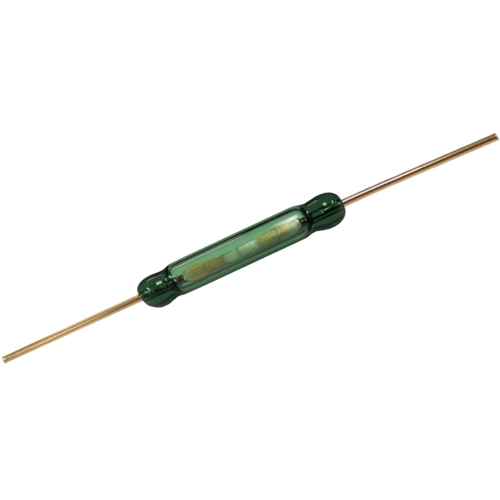

Reed switch, GC 3817(3540), COMUS (Assemtech)
Grade: Commercial, Function: normally open, Bulb length: 24.5mm, Switching voltage VDC: 400V, Voltage VAC: 400V, Switching current: 3A, Switching capacity: 60W, Standard length: 55mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact resistance | 100 mΩ | |
| Breaking capacity | 60 W | |
| Switching Voltage (DC) | 400 V | |
| Connection | solder connection | |
| Latching switching function | 1 Form A (N/O) | |
| diameter | 3.8 mm | |
| switching current | 3 A | |
| Assembly | THT | |
| Switching Voltage (AC) | 400 V | |
| Product type | reed switche | |
| Length | 24.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
