GC 1625(8090) | COMUS
Reed switche, THT, 1 Form C (NO/NC), 60 W, 230 V (DC), 1 A, GC 1625(8090)
Unit Price (€ / pc.)
8.9607 € *
Available: 92 pcs.
Next delivery: 200 pcs. on 2025-11-14
Total Price:
8.96 € *
Price list
Quantity
Price per unit*
1 pcs.
8.9607 €
10 pcs.
7.8778 €
100 pcs.
6.9258 €
250 pcs.
6.6402 €
1000 pcs.
6.2237 €
*incl. VAT plus shipping costs
Subject to prior sale

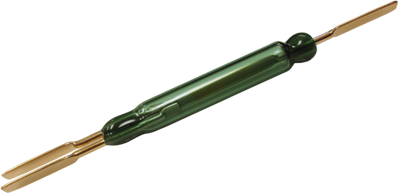

Reed switch, GC 1625(8090), COMUS (Assemtech)
Grade: Commercial, Function: changeover switch, length of glass bulb: 52 mm, switching voltage VDC: 230 V, voltage VAC: 230 V, switching current: 1 A, switching capacity: 60 W, standard length: 80 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 5.6 mm | |
| Switching Voltage (DC) | 230 V | |
| Latching switching function | 1 Form C (NO/NC) | |
| switching current | 1 A | |
| Length | 52 mm | |
| Product type | reed switche | |
| Assembly | THT | |
| Contact resistance | 100 mΩ | |
| Switching Voltage (AC) | 230 V | |
| Breaking capacity | 60 W |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IN |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
