BT152-800R-T | COMSET Semiconductors

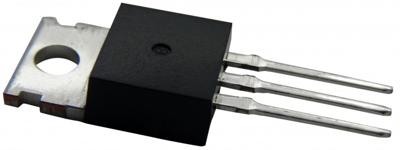

Triac, 800 V (RRM), 13 A, TO-220, COMSET Semiconductors BT152-800R-T
Order No.: 18S6680
EAN: 4099879032072
MPN:
BT152-800R-T
Unit Price (€ / pc.)
0.2380 € *
Standard delivery time from the manufacturer is: On Request
Silicon controlled rectifier, BT152-800R-T, COMSET
The BT152-800R-T is a planar passivated silicon controlled rectifier (SCR) in a SOT78 plastic package intended for use in applications requiring very high inrush current capability and high thermal cycling performance.
Features
- High thermal cycling performance
- High voltage capability
- Planar passivated for voltage ruggedness and reliability
- Very high current surge capability
Applications
- Ignition circuits
- Motor control
- Protection circuits
- Voltage regulation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Gate trigger current | 32 mA | |
| Gate trigger voltage | 1.5 V | |
| Enclosure | TO-220 | |
| Voltage V RRM (peak reverse voltage) | 800 V | |
| Voltage slew rates dV/dt | 300 V/s | |
| Assembly | THT | |
| Max. current | 13 A | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -40 °C | |
| Version | triac | |
| Number of pins | 3 | |
| max. holding current | 60 mA | |
| Rated current | 13 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85413000 |
| Country of origin | CN |
| Original Packaging | Reel with 4,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
