BDV65C | COMSET Semiconductors

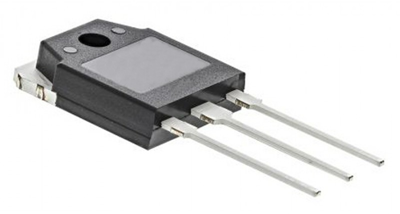

Bipolar junction transistor, NPN, 12 A, 120 V, THT, TO-3P, BDV65C
Order No.: 15S5010
EAN: 4099879028525
MPN:
BDV65C
Unit Price (€ / pc.)
5.0932 € *
Available: 18 pcs.
Total Price:
5.09 € *
Price list
Quantity
Price per unit*
1 pcs.
5.0932 €
30 pcs.
4.4744 €
120 pcs.
4.2364 €
270 pcs.
4.0817 €
1020 pcs.
3.8556 €
*incl. VAT plus shipping costs
Subject to prior sale
NPN power transistor, BDV65C, COMSET
The BDV65C is a silicon epitaxial base transistor mounted in TO-3PN. It is designed for audio output stages and general amplifier and switching applications.
Features
- Compliance to RoHS
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Saturation voltage | 2 V | |
| Assembly | THT | |
| Enclosure | TO-3P | |
| Rated current | 12 A | |
| max.voltage between collector and base Vcbo | 120 V | |
| Version | NPN | |
| min. operating temperature | -65 °C | |
| Min DC gain | 1000 mA | |
| max. operating temperature | 150 °C | |
| max.voltage between collector and emitter Vceo | 120 V | |
| Collector current | 12 A | |
| Power dissipation | 125 W |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85412900 |
| Original Packaging | Bar with 30 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
