BD647 | COMSET Semiconductors

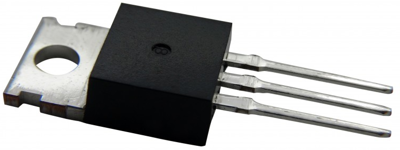

Bipolar junction transistor, NPN, 8 A, 80 V, THT, TO-220, BD647
Unit Price (€ / pc.)
1.0591 € *
Standard delivery time from the manufacturer is: 3 Weeks
NPN power transistor, BD647, COMSET
The BD647 is a NPN epitaxial-base transistors in a monolithic Dalrington circuit and housed in a TO-220 enveloppe. It is intended for output stages in audio equipment, general amplifiers, and analogue switching application.
Features
- Compliance to RoHS
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max.voltage between collector and emitter Vceo | 80 V | |
| max.voltage between collector and base Vcbo | 100 V | |
| min. operating temperature | -65 °C | |
| Rated current | 8 A | |
| max. operating temperature | 150 °C | |
| Version | NPN | |
| Assembly | THT | |
| Frequency | 10 MHz | |
| Saturation voltage | 2.5 V | |
| Collector current | 8 A | |
| Enclosure | TO-220 | |
| Power dissipation | 62.5 W |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85412900 |
| Country of origin | CN |
| Original Packaging | Bar with 50 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
