BD131 | COMSET Semiconductors

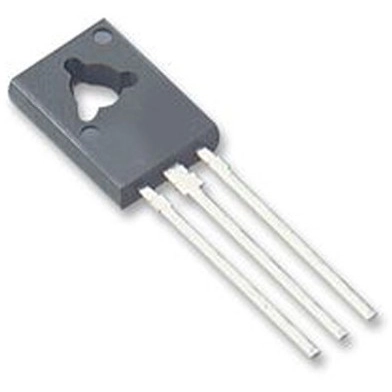

Bipolar junction transistor, NPN, 3 A, 45 V, THT, TO-126, BD131
Order No.: 13S4250
EAN: 4099879027924
MPN:
BD131
Unit Price (€ / pc.)
0.8211 € *
Available: 656 pcs.
Leadtime: 6 Weeks **
Total Price:
8.21 € *
Price list
Quantity
Price per unit*
10 pcs.
0.8211 €
50 pcs.
0.7259 €
250 pcs.
0.6307 €
*incl. VAT plus shipping costs
**Subject to prior sale
NPN power transistor, BD131, COMSET
The BD131 is a NPN transistor mounted in Jedec TO-126 plastic package. It is suitable for medium power applications.
Features
- Compliance to RoHS
Technical specifications
| Version | NPN | |
| Enclosure | TO-126 | |
| max. operating temperature | 150 °C | |
| max.voltage between collector and base Vcbo | 70 V | |
| max.voltage between collector and emitter Vceo | 45 V | |
| min. operating temperature | -65 °C | |
| Assembly | THT | |
| Rated current | 3 A | |
| Saturation voltage | 300 mV | |
| Transit frequency fTmin | 60 MHz | |
| Power dissipation | 15 W | |
| Collector current | 3 A | |
| Min DC gain | 20 mA |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85412900 |
| Original Packaging | Bar with 50 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
