BCY58-8-T | COMSET Semiconductors
Bipolar junction transistor, NPN, 200 mA, 32 V, THT, TO-18, BCY58-8-T
Unit Price (€ / pc.)
0.4641 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
2.32 € *
Price list
Quantity
Price per unit*
5 pcs.
0.4641 €
25 pcs.
0.4284 €
150 pcs.
0.3927 €
500 pcs.
0.3689 €
1000 pcs.
0.3451 €
*incl. VAT plus shipping costs
Subject to prior sale

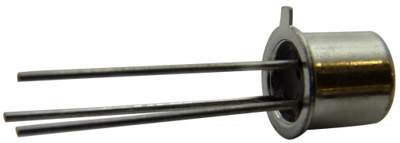

NPN transistor, BCY58-8-T, COMSET
The BCY58-8-T is NPN transistors mounted in TO-18 metal package with the collector connected to the case. It is designed for use in audio drive and low-noise input stages.
Features
- Compliance to RoHS
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max.voltage between collector and emitter Vceo | 32 V | |
| Transit frequency fTmin | 150 MHz | |
| min. operating temperature | -65 °C | |
| Rated current | 200 mA | |
| max. operating temperature | 150 °C | |
| Version | NPN | |
| Assembly | THT | |
| Max DC amplification | 310 mA | |
| Saturation voltage | 800 mV | |
| Collector current | 200 mA | |
| Enclosure | TO-18 | |
| Power dissipation | 0.39 W | |
| Min DC gain | 180 mA |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85412900 |
| Country of origin | CN |
| Original Packaging | Bulk with 1,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
