BC140-10-T | COMSET Semiconductors

Name: Bipolar junction transistor, PNP, 1 A, 40 V, THT, TO-39, BC140-10-T
Brand: COMSET Semiconductors
SKU: 11S3550
Availability: OutOfStock

Bipolar junction transistor, PNP, 1 A, 40 V, THT, TO-39, BC140-10-T

Order No.: 11S3550

EAN: 4099879026477

MPN:

BC140-10-T

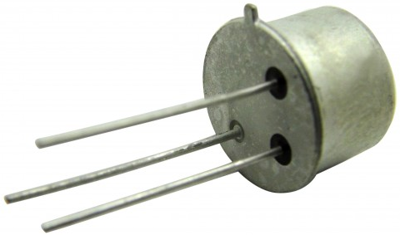

Image may differ

Key Specification:

Assembly THT

Enclosure TO-39

Version PNP

Saturation voltage 600 mV

Collector current 1 A

Show 2 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.5236 € *

Standard delivery time from the manufacturer is: 6 Weeks

Total Price:

523.60 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

General purpose transistor, BC140-10-T, COMSET

The BC140-10-T silicon planar epitaxial NPN transistor is mounted in TO-18 metal package. It is particulary designed for audio amplifiers and switching applications up to 1 A.

Features

Compliance to RoHS

Technical specifications

Filter	Property	Value
	Max DC amplification	160 mA
	min. operating temperature	-55 °C
	Assembly	THT
	Version	PNP
	Rated current	1 A
	max.voltage between collector and base Vcbo	80 V
	Min DC gain	63 mA
	Enclosure	TO-39
	Saturation voltage	600 mV
	Transit frequency fTmin	50 MHz
	Power dissipation	3.7 W
	max.voltage between collector and emitter Vceo	40 V
	Collector current	1 A
	max. operating temperature	175 °C
