2N5415-T | COMSET Semiconductors

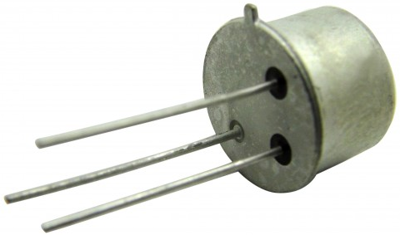

Bipolar junction transistor, PNP, -200 mA, -200 V, THT, TO-39, 2N5415-T

Order No.: 28S1300
EAN: 4099879030498
MPN:
2N5415-T
Series: 2N5
2N5415-T COMSET Semiconductors Bipolar Transistors
Image may differ
Unit Price (€ / pc.)
0.7854 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
235.62 € *
*incl. VAT plus shipping costs
Subject to prior sale
300 pcs.
0.7854 €

PNP transistor, 2N5415-T, COMSET

The 2N5415-T is a PNP transistors mounted in TO-39 metal case. It is intended for use in high-voltage switching and linear amplifier applications.

Features

  • Compliance to RoHS
Technical specifications
Max DC amplification 150 mA
Saturation voltage -2.5 V
Assembly THT
Enclosure TO-39
max.voltage between collector and base Vcbo -200 V
Version PNP
min. operating temperature -65 °C
Transit frequency fTmin 15 MHz
Min DC gain 30 mA
max. operating temperature 150 °C
max.voltage between collector and emitter Vceo -200 V
Collector current -200 mA
Power dissipation 1 W
Logistics
Country of origin CN
Customs tariff number 85412900
Original Packaging Bulk with 500 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
