MKA-5µF-450V-FS 30X57MM A | Comar
MKP motor operating capacitor, 5 µF, ±5 %, 450 V (AC), PP, 16 mm, MKA-5µF-450V-FS 30X57MM A
Unit Price (€ / pc.)
7.3542 € *
Available: 279 pcs.
Next delivery: 350 pcs. on 2025-06-13
Leadtime: 10 Weeks **
Total Price:
7.35 € *
Price list
Quantity
Price per unit*
1 pcs.
7.3542 €
10 pcs.
6.8187 €
100 pcs.
6.4260 €
500 pcs.
6.0690 €
1000 pcs.
5.7715 €
*incl. VAT plus shipping costs
**Subject to prior sale

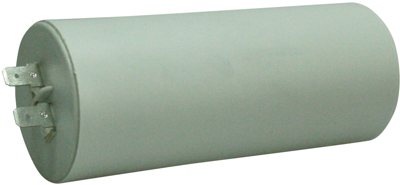

MKP motor operation capacitor, type Comar MKA.
In self-extinguishing plastic can
With 6.3 x 0.8 mm tab terminals, type MKA.

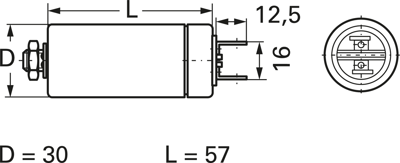

Technical specifications
| Dielectric material | PP | |
| Capacity | 5 µF | |
| Grid | 16 mm | |
| Height | 57 mm | |
| Rated voltage (AC) | 450 V | |
| Design | can | |
| min. operating temperature | -25 °C | |
| Tolerance | ±5 % | |
| max. operating temperature | 85 °C | |
| Number of pins | 2 |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85322500 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
