192A1350 | CML

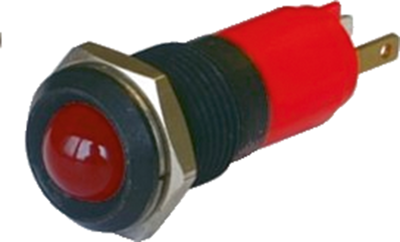

Signal light, 24 V (AC), 24 V (DC), red, 700 mcd, Mounting Ø 14 mm, LED number: 1, 192A1350
Unit Price (€ / pc.)
8.7108 € *
Next delivery: 30 pcs. on 2025-11-11
Total Price:
8.71 € *
Price list
Quantity
Price per unit*
1 pcs.
8.7108 €
10 pcs.
7.6636 €
50 pcs.
7.1519 €
100 pcs.
6.1523 €
500 pcs.
5.7001 €
*incl. VAT plus shipping costs
Subject to prior sale
LED signal lamps, type CML 192A.
Panel-mount diameter: 14 mm, Very bright light, visible in sunlight. LED diameter: 10 mm. With high-gloss chrome-plated or black chrome-plated brass reflector, series resistor and half-wave rectifier. Connection: tab terminals 2.8 x 0.8 mm. Degree of protection (EN 60529): IP 67, at the front between the LED and housing, and between the housing and front panel if the included seal ring is used. Ambient temperatures: –20 to +60 °C.
With black chrome-plated brass reflector.
Technical attributes (type, rated voltage, color, rated current (AC/DC), luminous intensity): 192A1350, 24 V AC/DC, red, 9.0/17 mA, 700 mcd
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | faston plug 2.8 x 0.8 mm | |
| Farbe der Beleuchtung | red | |
| Number of LEDs | 1 | |
| Rated voltage (AC) | 24 V | |
| Luminous intensity | 0.7 cd | |
| Rated voltage (DC) | 24 V | |
| Assembly | central Mounting | |
| Diode Diameter | 10 mm | |
| Rated current | 17 mA | |
| Installation diameter | 14 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85414100 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
