192A0255 | CML
Signal light, 12 V (AC), 12 V (DC), green, 1.25 cd, Mounting Ø 14 mm, LED number: 1, 192A0255
Unit Price (€ / pc.)
12.9234 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
646.17 € *
Price list
Quantity
Price per unit*
50 pcs.
12.9234 €
150 pcs.
12.3522 €
500 pcs.
11.7215 €
*incl. VAT plus shipping costs
Subject to prior sale

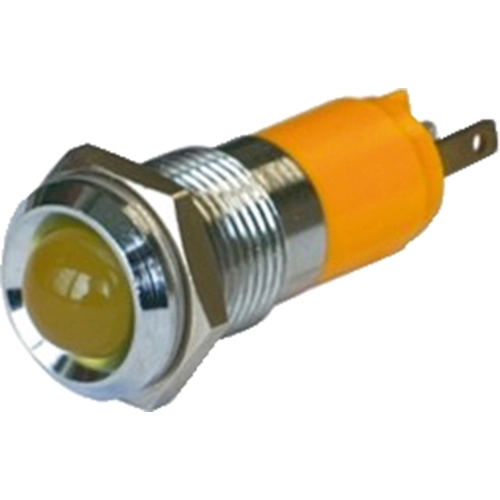

LED signal lamps, type CML 192A.

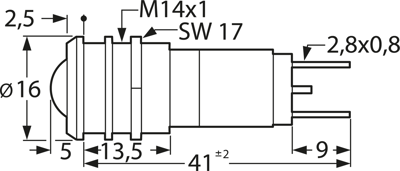

Panel-mount diameter: 14 mm, Very bright light, visible in sunlight. LED diameter: 10 mm. With high-gloss chrome-plated or black chrome-plated brass reflector, series resistor and half-wave rectifier. Connection: tab terminals 2.8 x 0.8 mm. Degree of protection (EN 60529): IP 67, at the front between the LED and housing, and between the housing and front panel if the included seal ring is used. Ambient temperatures: –20 to +60 °C.
With high-gloss chrome-plated brass reflector.
Technical attributes (type, rated voltage, color, rated current (AC/DC), luminous intensity): 192A0255, 12 V AC/DC, green, 9.0/17 mA, 1250 mcd
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Farbe der Beleuchtung | green | |
| Luminous intensity | 1.25 cd | |
| Rated current | 17 mA | |
| Rated voltage (AC) | 12 V | |
| Connection | faston plug 2.8 x 0.8 mm | |
| Assembly | central Mounting | |
| Number of LEDs | 1 | |
| Rated voltage (DC) | 12 V | |
| Installation diameter | 14 mm | |
| Diode Diameter | 10 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85414100 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
