19120354 | CML

LED signal light, 24 V (DC), red/green, 30 mcd, Mounting Ø 8 mm, pitch 3.8 mm, LED number: 1, 19120354

Order No.: 31G4674
EAN: 4099889579598
MPN:
19120354
Series: 19120
CML
19120354 CML Signal Lamps, Indicators, Arrays
Image may differ
Unit Price (€ / pc.)
9.3534 € *
Available: 30 pcs.
Leadtime: 5 Weeks **
Total Price:
9.35 € *
Price list
Quantity
Price per unit*
1 pcs.
9.3534 €
10 pcs.
8.2348 €
50 pcs.
7.6636 €
150 pcs.
7.3304 €
500 pcs.
6.9615 €
*incl. VAT plus shipping costs
**Subject to prior sale

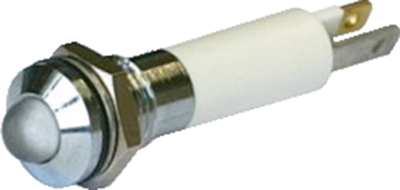

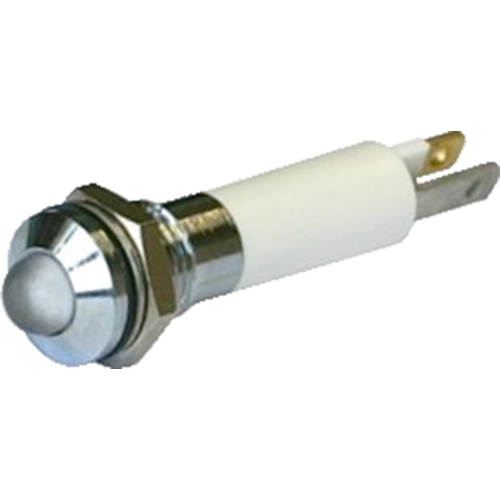

DUO LED signal lamps, type CML 1912.

Panel-mount diameter: 8.0 mm. Dual-color. LED diameter: 5.0 mm, inner reflector made of high-gloss chrome-plated brass. Connection: tab terminals 2.0 x 0.5 mm. Degree of protection (EN 60529): IP 67, at the front between the LED and housing, and between the housing and front panel if the included seal ring is used. Ambient temperatures: –20 to +60 °C.

Technical attributes (type, rated voltage, colors, rated current, luminous intensity): 19120354, 24 VDC, red/green, 22 mA, 11/30 mcd

Technical specifications
Connection faston plug 2.0 x 0.5 mm
Number of LEDs 1
Diode Diameter 5 mm
Installation diameter 8 mm
Farbe der Beleuchtung red/green
Luminous intensity 0.03 cd
Assembly central Mounting
Rated voltage (DC) 24 V
Rated current 22 mA
Grid 3.8 mm
Logistics
Country of origin CZ
Customs tariff number 85414100
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
