19050351 | CML
Signal light, 24 V (DC), green, 32 mcd, Mounting Ø 8 mm, pitch 4.3 mm, LED number: 1, 19050351
Unit Price (€ / pc.)
6.6521 € *
Next delivery: 50 pcs. on 2025-12-02
Total Price:
6.65 € *
Price list
Quantity
Price per unit*
1 pcs.
6.6521 €
10 pcs.
5.8548 €
100 pcs.
5.1289 €
250 pcs.
4.9266 €
1000 pcs.
4.6172 €
*incl. VAT plus shipping costs
Subject to prior sale

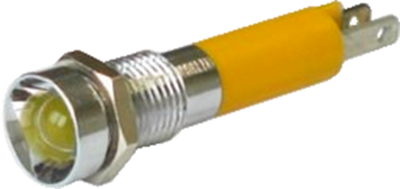

LED signal lamps, type CML 1905.
Panel-mount diameter: 8.0 mm. LED diameter: 5.0 mm, inner reflector made of high-gloss chrome-plated brass, series resistor. Connection: tab terminals 2.8 x 0.8 mm. Degree of protection (EN 60529): IP 67, at the front between the LED and housing, and between the housing and front panel if the included seal ring is used. Ambient temperatures: –20 to +60 °C.
Technical attributes (type, rated voltage, color, rated current, luminous intensity): 19050351, 24 VDC, green, 20 mA, 32 mcd
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | central Mounting | |
| Farbe der Beleuchtung | green | |
| Rated current | 20 mA | |
| Diode Diameter | 5 mm | |
| Installation diameter | 8 mm | |
| Number of LEDs | 1 | |
| Rated voltage (DC) | 24 V | |
| Luminous intensity | 0.032 cd | |
| Grid | 4.3 mm | |
| Connection | faston plug 2.8 x 0.8 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85414100 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
