19040353 | CML
Signal light, 24 V (DC), red, 80 mcd, Mounting Ø 8 mm, pitch 4.3 mm, LED number: 1, 19040353
Unit Price (€ / pc.)
3.6533 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
3.65 € *
Price list
Quantity
Price per unit*
1 pcs.
3.6533 €
10 pcs.
3.2249 €
100 pcs.
2.8203 €
250 pcs.
2.7132 €
1000 pcs.
2.5347 €
*incl. VAT plus shipping costs
Subject to prior sale

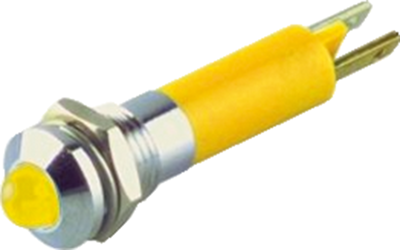

LED signal lamps, type CML 1904.
Panel-mount diameter: 8.0 mm. LED diameter: 5.0 mm, inner reflector made of high-gloss chrome-plated brass, series resistor. Connection: tab terminals 2.8 x 0.8 mm. Degree of protection (EN 60529): IP 67, at the front between the LED and housing, and between the housing and front panel if the included seal ring is used. Ambient temperatures: –20 to +60 °C.
Technical attributes (type, rated voltage, color, rated current, luminous intensity): 19040353, LED signal lamp, 24 VDC, red, 20 mA, 80 mcd
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Luminous intensity | 0.08 cd | |
| Rated voltage (DC) | 24 V | |
| Installation diameter | 8 mm | |
| Connection | faston plug 2.8 x 0.8 mm | |
| Diode Diameter | 5 mm | |
| Assembly | central Mounting | |
| Grid | 4.3 mm | |
| Number of LEDs | 1 | |
| Rated current | 20 mA | |
| Farbe der Beleuchtung | red |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85414100 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
