19010352 | CML
Signal light, 24 V (DC), yellow, 8 mcd, Mounting Ø 8 mm, pitch 4.3 mm, LED number: 1, 19010352
Unit Price (€ / pc.)
5.1527 € *
Available: 50 pcs.
Total Price:
5.15 € *
Price list
Quantity
Price per unit*
1 pcs.
5.1527 €
10 pcs.
4.5458 €
100 pcs.
3.9746 €
250 pcs.
3.8199 €
1000 pcs.
3.5819 €
*incl. VAT plus shipping costs
Subject to prior sale

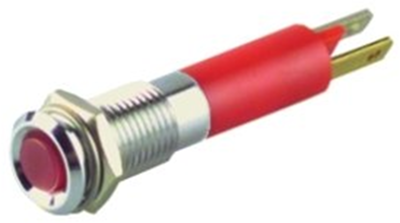

LED signal lamps, type CML 1901.
Panel-mount diameter: 8.0 mm. LED diameter: 5.0 mm, super flat reflector made of high-gloss chrome-plated brass, series resistor. Connection: tab terminals 2.8 x 0.8 mm. Degree of protection (EN 60529): IP 67, at the front between the LED and housing, and between the housing and front panel if the included seal ring is used. Ambient temperatures: –20 to +60 °C.
Technical attributes (type, rated voltage, color, rated current, luminous intensity): 19010352, 24 VDC, yellow, 20 mA, 8.0 mcd
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 24 V | |
| Luminous intensity | 0.008 cd | |
| Connection | faston plug 2.8 x 0.8 mm | |
| Assembly | central Mounting | |
| Number of LEDs | 1 | |
| Diode Diameter | 5 mm | |
| Farbe der Beleuchtung | yellow | |
| Installation diameter | 8 mm | |
| Grid | 4.3 mm | |
| Rated current | 20 mA |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85414100 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
