45327 | CM Manufactory
Safety relays, 4 safety semiconductor outputs, 24 VDC, 45327
Unit Price (€ / pc.)
171.5504 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
171.55 € *
Price list
Quantity
Price per unit*
1 pcs.
171.5504 €
5 pcs.
159.8051 €
10 pcs.
148.0598 €
*incl. VAT plus shipping costs
**Subject to prior sale

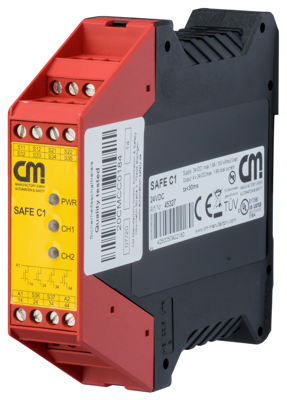

Safety controller, 45327, CM Manufactory
The 45327 is a safety relay with OSSD outputs for emergency stop circuits and safety door monitoring up to Cat. 4 / PL e according to EN ISO 13849-1. The device is designed for one or two channel operation. Optionally with or without monitoring of the start button. Furthermore, logical connections are possible with two or more of these devices.
Technical specifications
| Version | safety switching device | |
| Contact type | 4 safety semiconductor outputs | |
| Input voltage AC | 24 VDC | |
| Type of Use | emergency stop circuits and safety gate monitoring contacts | |
| Assembly | DIN rail | |
| Width | 22.5 mm | |
| Height | 99 mm | |
| Depth | 114.5 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85364190 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | lead titanate, lead |
| SVHC free | No |
| RoHS conform | Yes |
