Safety relays, 4 safety semiconductor outputs, 24 VDC, 45071
Unit Price (€ / pc.)
201.6931 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
201.69 € *
Price list
Quantity
Price per unit*
1 pcs.
201.6931 €
5 pcs.
191.7209 €
10 pcs.
181.7487 €
*incl. VAT plus shipping costs
**Subject to prior sale

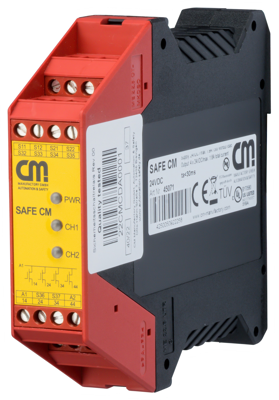

Safety controller, 45071, CM Manufactory
The 45071 is a safety switching device for safety safety mats and safety safety edges based on the normally open principle (four-wire) or with resistance evaluation (8.2 kOhm) with 4 OSSD outputs up to Cat. 4 / PL e according to EN ISO 13849-1.
Technical specifications
| Version | safety switching device | |
| Contact type | 4 safety semiconductor outputs | |
| Input voltage AC | 24 VDC | |
| Type of Use | emergency stop circuits and safety gate monitoring contacts | |
| Assembly | DIN rail | |
| Width | 22.5 mm | |
| Height | 99 mm | |
| Depth | 114.5 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85364190 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | lead titanate, lead |
| SVHC free | No |
| RoHS conform | Yes |
