45026 | CM Manufactory
Safety relays, 2 Form A (N/O) + 1 Form B (N/C) delayed release, 24 V AC/DC, 45026
Unit Price (€ / pc.)
370.8278 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
370.83 € *
Price list
Quantity
Price per unit*
1 pcs.
370.8278 €
5 pcs.
344.4514 €
10 pcs.
318.0751 €
*incl. VAT plus shipping costs
Subject to prior sale

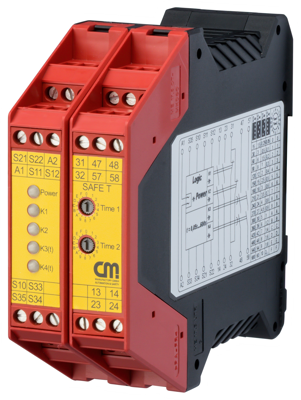

Safety controller, 45026, CM Manufactory
The 45026 is a safety switching device for emergency stop and protective door applications as well as two-channel light barrier monitoring with switching delay (0.05s - 600s off-delay) up to Cat. 4 / PL e according to EN ISO 13849-1. The device is designed for one or two channel operation. The device can be configured to operate with or without start button monitoring. Software version TR: Retriggerable variant. The device can be retriggered (restarted) during the time elapse, for example by withdrawing the emergency stop switch.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | safety switching device | |
| Contact type | 2 Form A (N/O) + 1 Form B (N/C) delayed release | |
| Input voltage AC | 24 V AC/DC | |
| Type of Use | for emergency stop and safety gate applications with switching delay | |
| Assembly | DIN rail | |
| Width | 35 mm | |
| Height | 99 mm | |
| Depth | 114.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364190 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | lead titanate, lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
