45019 | CM Manufactory

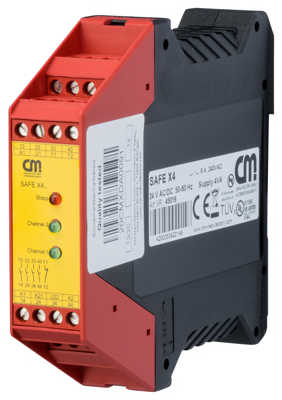

Safety relays, 4 Form A (N/O) + 1 Form B (N/C), 24 V AC/DC, 45019
Unit Price (€ / pc.)
166.9808 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
166.98 € *
Price list
Quantity
Price per unit*
1 pcs.
166.9808 €
5 pcs.
166.1657 €
10 pcs.
165.3505 €
*incl. VAT plus shipping costs
Subject to prior sale
Safety controller, 45019, CM Manufactory
The 45019 is a safety switching device for contact multiplication in emergency stop circuits, protective door monitoring circuits and other safety circuits in accordance with DIN EN 60204. The device is designed for one or two channel operation. It also has cross-circuit monitoring.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | safety switching device | |
| Contact type | 4 Form A (N/O) + 1 Form B (N/C) | |
| Input voltage AC | 24 V AC/DC | |
| Type of Use | for contact multiplication | |
| Assembly | DIN rail | |
| Width | 22.5 mm | |
| Height | 99 mm | |
| Depth | 114.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85364190 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
