6-1617090-0 | CII
Relay, 2 Form C (NO/NC), 26.5 V (DC), 1000 Ω, 2 A, 28 V (DC), bistable, 6-1617090-0
Order No.: 72P0320
EAN: 4099891596118
MPN:
6-1617090-0
As a private customer, you can buy this item as soon as we have it back in stock.

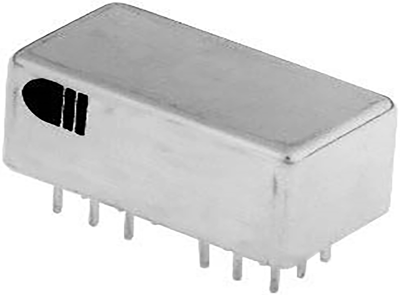

Low signal relay, 6-1617090-0, CII
Half-size relay, 2 Form C, DPDT, 2 C/O, 26.5 VDC Input, 2 A, 26.5 VDC Coil Voltage, 1000 Ω Coil Resistance, 702 mW Coil Power (DC).
Features
- Hermetically sealed
- High shock and vibration ratings
- Optional terminals and mounting styles
- Latching design
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coil resistance | 1000 Ω | |
| Switching Voltage (DC) | 28 V | |
| Contact type | 2 Form C (NO/NC) | |
| Connection | solder connection | |
| switching current | 2 A | |
| Contact material | Ag + Au | |
| Coil type | bistable | |
| Coil voltage (DC) | 26.5 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85364190 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | No |
| SVHC free | Yes |
