5-1617758-2 | CII
Relay, 2 Form C (NO/NC), 28 V (DC), 500 Ω, 5 A, 28 V (DC), 115 V (AC), monostable, 5-1617758-2
Order No.: 71P9463
EAN: 4099891595562
MPN:
5-1617758-2
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
374.8857 € *
Available in 12 Days: 186 pcs. - if ordered today

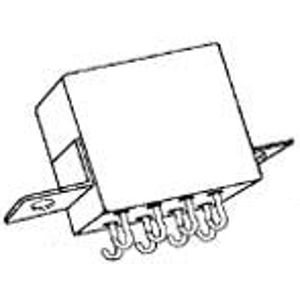

Mid-range relay, 5-1617758-2, CII
The 5-1617758-2 is a polarized single-side stable design, where the flux from a permanent magnet provides the armature holding force in the deactivated state, and its flux path is switched and combined with the coil flux in the operated state.
Features
- Hermetically Sealed
- Balanced Force
- Permanent Magnet Drive
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact type | 2 Form C (NO/NC) | |
| switching current | 5 A | |
| Coil voltage (DC) | 28 V | |
| Coil resistance | 500 Ω | |
| Switching Voltage (DC) | 28 V | |
| Switching Voltage (AC) | 115 V | |
| Connection | solder connection | |
| Coil type | monostable | |
| Contact material | AgCdO |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364110 |
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| Electrical equipment take-back |  |
| RoHS conform | No |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
