2-1617033-6 | CII

Name: Relay, 2 Form C (NO/NC), 12 V (DC), 160 Ω, 2 A, 28 V (DC), 115 V (AC), monostable, 2-1617033-6
Brand: CII
SKU: 71P5001
Availability: InStock

Relay, 2 Form C (NO/NC), 12 V (DC), 160 Ω, 2 A, 28 V (DC), 115 V (AC), monostable, 2-1617033-6

Order No.: 71P5001

EAN: 4099891592745

MPN:

2-1617033-6

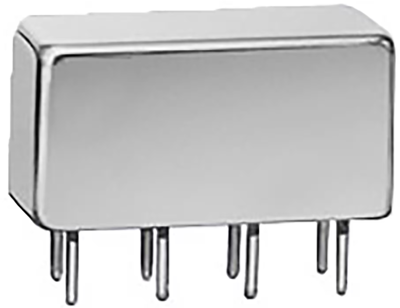

Image may differ

Key Specification:

Contact type 2 Form C (NO/NC)

switching current 2 A

Coil voltage (DC) 12 V

Coil resistance 160 Ω

Ordering Information:

not to be sold to private customers

Download Datasheet Technical specifications

Unit Price (€ / pc.)

90.0116 € *

Available in 5 Days: 17 pcs. - if ordered today

Total Price:

180.02 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Low signal relay, 2-1617033-6, CII

Half-Size relay, 2 Form C, DPDT, 2 C/O, 12 VDC Input, 2 A, 12 VDC Coil voltage, 160 Ω Coil resistance, 900 mW Coil power (DC), 28 VDC, Socket Mount.

Features

Hermetically sealed
High shock and vibration ratings
Excellent RF switching

Technical specifications

Filter	Property	Value
	Coil voltage (DC)	12 V
	Switching Voltage (DC)	28 V
	switching current	2 A
	Coil resistance	160 Ω
	Contact type	2 Form C (NO/NC)
	Switching Voltage (AC)	115 V
	Coil type	monostable
	Connection	PCB pin
	Contact material	Ag + Au
