1617037-4 | CII
Relay, 2 Form C (NO/NC), 26.5 V (DC), 700 Ω, 5 A, 28 V (DC), 115 V (AC), monostable, 1617037-4
Order No.: 71P2571
EAN: 4099891591236
MPN:
1617037-4
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
356.524 € *
Available in 12 Days: 1 pcs. - if ordered today

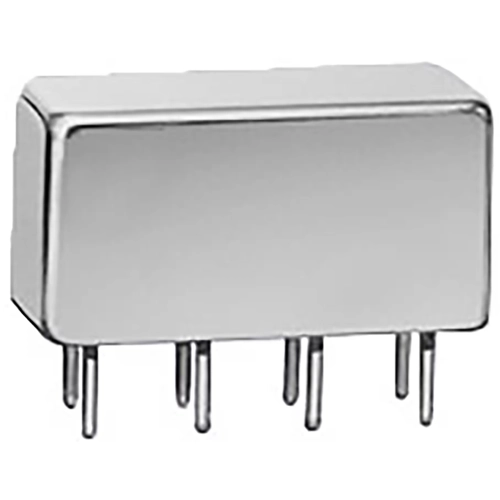

Low signal relay, 1617037-4, CII
Half-size relay, 2 Form C, DPDT, 2 C/O, 26.5 VDC Input, 5 A, 26.5 VDC Coil Voltage, 700 Ω Coil Resistance, 1003 mW Coil Power (DC).
Features
- Hermetically sealed
- High shock and vibration ratings
- Optional terminals and mounting styles
- Excellent RF switching
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact type | 2 Form C (NO/NC) | |
| switching current | 5 A | |
| Coil voltage (DC) | 26.5 V | |
| Coil resistance | 700 Ω | |
| Switching Voltage (DC) | 28 V | |
| Switching Voltage (AC) | 115 V | |
| Connection | solder connection | |
| Coil type | monostable | |
| Contact material | Ag alloy |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IN |
| Customs tariff number | 85364190 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
