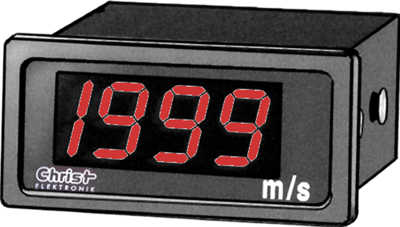

Display instrument, freely scaleable, CAM100P24-00-2-0000
Scalable display instruments, type CAM 100.
Depending on the application, suitable for DC voltage or current measurements up to 200 V or 200 mA, or temperature measurements with Pt 100 probe; LED display: red, 3 1/2-digit, height 8.0 mm, 7-segment. Display range: scalable within a range from –1999 to +1999. Decimal point: via solder jumper. Error indication with digit 1. Measuring rate: 2.5/s. Measuring ranges: 0 to 10 V, 0 (4.0) to 20 mA, 0 to 0.2/2.0/20/200 V or mA (measuring error: ±1 digit, ±0.15% of the display), with Pt 100: –100 to +199.9 °C (measuring error ±0.2 K, ±0.2% of the display). Operation: 24 VDC, maximum 50 mA, electrically isolated. Connection: plug terminals, maximum 1.5 mm². Case: Noryl. Removable bezel. Dimensions: W 48, H 24, L 78 mm above the terminals. Mounting depth: 72 mm. Control panel cutout: 45.0 x 22.2 mm. Switchboard thickness: maximum 5.0 mm. Operating temperatures: 0 to +50 °C. Degree of protection: IP 50 at the front panel. Supplied with two fastening elements.
Type: CAM100P24, display instrument for Pt 100 probes
| Filter | Property | Value |
|---|---|---|
| Frequency measurement | No | |
| Assembly | built-in mounting | |
| max. Voltage | 200 V | |
| Height of cut-out | 22.2 mm | |
| Installation depth | 72 mm | |
| Voltage | 0-200 VDC | |
| Width of cut-out | 45 mm | |
| Degree of protection (IP) | IP50 | |
| Max. current | 200 mA | |
| Temperature measurement | PT100 |
| Property | Value |
|---|---|
| Customs tariff number | 90303370 |
| Country of origin | DE |
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
