CLM210W230-00-0-0OOO | Christ-Elektronik

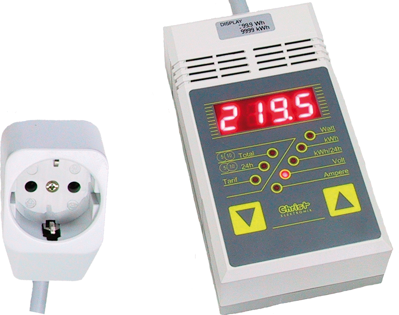

Energy meter, with display of apparent power, reactive power, apparent energy, reactive energy, 100-264 V, 0.01-16 A, 0-4224 W, (L x W x H) 150 x 82 x 45 mm, CLM210W230-00-0-0OOO
Discontinued
Power consumption meters, type Christ CLM 210.
4-digit 13 mm LED display, red. The device can be used to measure input power and power consumption. The consumption values (also 24 h measurements) are saved to a power failure-proof data memory. It also supports currency-independent consumer cost readings (cumulative for 24 h) if the consumer rate per KWh is entered; Measuring and display ranges: power 0 to 4224 W, consumption 0 to 9999 kWh total/0 to 108 kWh in 24 h, voltage 100 to 264 V, current 0.01 to 16 A, rates (currency-independent) max. 999.9, consumption costs 0 to 9999, auto-ranging consumption measurements. Resolution: 0.1 W or 1.0 W. Measuring tolerance: ±0.5%/±5 digits of the display to value. Measuring rate: 1.0 s. Consumption memory: no time limit. Operating elements: 2 short-stroke key switches, foil protected. Operating voltage: 100 to 264 VAC/47 to 63 Hz. Power consumption: < 4.0 VA. Operating temperatures: 0 to +50 °C. Case: ABS, gray. Dimensions: W 82, L 150, D 45 mm.
Type: CLM 210, power consumption meter without output
| Filter | Property | Value |
|---|---|---|
| Product type | energy meter | |
| Version | with display of apparent power, reactive power, apparent energy, reactive energy | |
| measurement range | 100-264 V, 0.01-16 A, 0-4224 W | |
| Length | 150 mm | |
| Width | 82 mm | |
| Height | 45 mm | |
| Weight | 490 g |
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 90303900 |
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
