HHXD350ARA151MHA0G | Chemi-Con

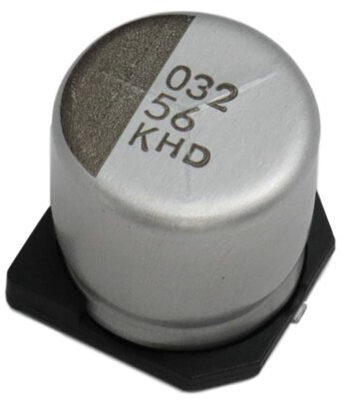

Polymer hybrid aluminum electrolytic capacitor, SMD, 150 µF, 35 V, ±20 %, HHXD350ARA151MHA0G
Unit Price (€ / pc.)
1.4875 € *
Available: 50 pcs.
Total Price:
1.49 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4875 €
10 pcs.
0.9639 €
100 pcs.
0.7378 €
500 pcs.
0.5950 €
1000 pcs.
0.5355 €
*incl. VAT plus shipping costs
Subject to prior sale
Conductive polymer hybrid, HHXD350ARA151MHA0G, Chemi-Con
The HHXD350ARA151MHA0G is a conductive polymer hybrid aluminum electrolytic capacitor with high reliability and high voltage realized by hybrid electrolyte.
For high reliability applications like automotive equipment, base station equipment, etc.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 35 V | |
| Capacity | 150 µF | |
| Design | SMD | |
| min. operating temperature | -55 °C | |
| diameter | 8 mm | |
| Tolerance | ±20 % | |
| Length | 10 mm | |
| ESR (Equivalent Series Resistance) | 27 mΩ | |
| max. operating temperature | 105 °C | |
| Ripple current | 2.3 A |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 500 pieces |
| Customs tariff number | 85322200 |
| Country of origin | JP |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
