HHXD250ARA101MF80G | Chemi-Con

Polymer hybrid aluminum electrolytic capacitor, SMD, 100 µF, 25 V, ±20 %, HHXD250ARA101MF80G

Order No.: 10D6003
EAN: 4099891762162
MPN:
HHXD250ARA101MF80G
Series: HXD
HHXD250ARA101MF80G Chemi-Con Polymer and Hybrid Capacitors

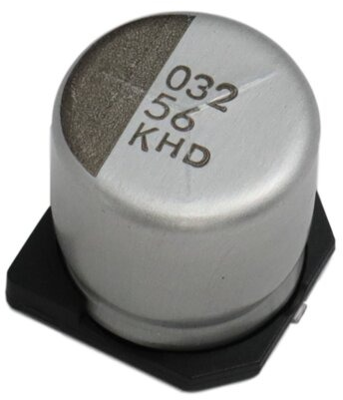

Image may differ
Unit Price (€ / pc.)
0.9996 € *
Available: 50 pcs.
Total Price:
1.00 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9996 €
10 pcs.
0.6426 €
100 pcs.
0.4998 €
500 pcs.
0.4046 €
900 pcs.
0.3689 €
*incl. VAT plus shipping costs
Subject to prior sale

Conductive polymer hybrid, HHXD250ARA101MF80G, Chemi-Con

The HHXD250ARA101MF80G is a conductive polymer hybrid aluminum electrolytic capacitor with high reliability and high voltage realized by hybrid electrolyte.

For high reliability applications like automotive equipment, base station equipment, etc.

Technical specifications
Filter Property Value
ESR (Equivalent Series Resistance) 30 mΩ
Design SMD
max. operating temperature 105 °C
Capacity 100 µF
diameter 6.3 mm
Ripple current 2 A
min. operating temperature -55 °C
Tolerance ±20 %
Rated voltage (DC) 25 V
Length 7.7 mm
Logistics
Property Value
Country of origin JP
Original Packaging Reel with 900 pieces
Customs tariff number 85322200
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
