HHXC630ARA820MJA0G | Chemi-Con

Polymer hybrid aluminum electrolytic capacitor, SMD, 82 µF, 63 V, ±20 %, HHXC630ARA820MJA0G

Order No.: 10D5993
EAN: 4099891762155
MPN:
HHXC630ARA820MJA0G
Series: HXC
HHXC630ARA820MJA0G Chemi-Con Polymer and Hybrid Capacitors

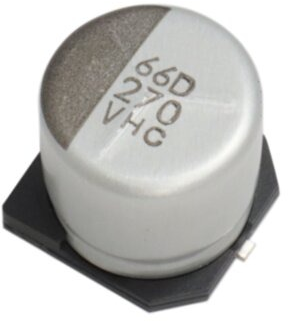

Image may differ
Unit Price (€ / pc.)
1.9635 € *
Available: 40 pcs.
Total Price:
1.96 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9635 €
10 pcs.
1.2733 €
100 pcs.
0.9758 €
500 pcs.
0.7854 €
1000 pcs.
0.7140 €
*incl. VAT plus shipping costs
Subject to prior sale

Conductive polymer hybrid, HHXC630ARA820MJA0G, Chemi-Con

The HHXC630ARA820MJA0G is a conductive polymer hybrid aluminum electrolytic capacitor with high reliability and high voltage realized by hybrid electrolyte.

For high temperature and high reliability applications like automotive equipment, base station equipment, etc.

Technical specifications
Filter Property Value
ESR (Equivalent Series Resistance) 30 mΩ
Design SMD
max. operating temperature 125 °C
Capacity 82 µF
diameter 10 mm
Ripple current 1.4 A
min. operating temperature -55 °C
Tolerance ±20 %
Rated voltage (DC) 63 V
Length 10 mm
Logistics
Property Value
Country of origin JP
Original Packaging Reel with 500 pieces
Customs tariff number 85322200
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
